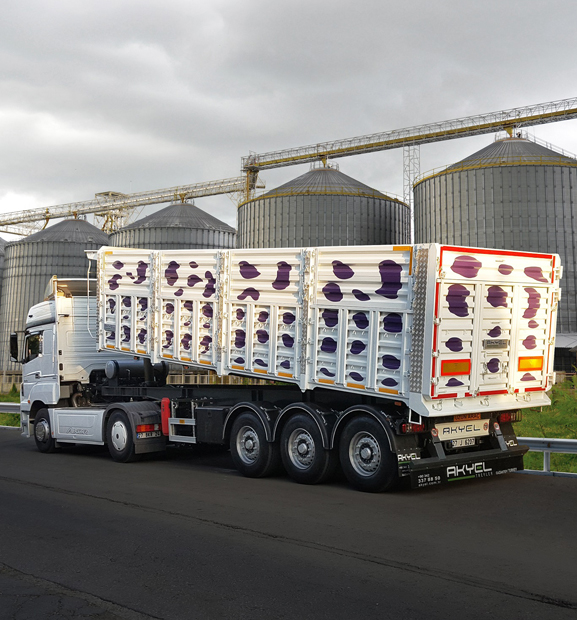

DAMPER SEMI TRAILER WITH SIDE DOORS

Akyel Trailer

DAMPER SEMI TRAILER WITH SIDE DOORS

Download Catalog 2018

CHASSIS:

Made of high tensile stell (I cut).
AXLE and SUSPENSION:

Drum and disk brakes, liftable front axle, 3x12 ton axles with air suspension..
TYRES:

385/65 R 22.5 Tubeless tires with 11.75 R 22.5 rims
BRAKES SYSTEM:

EBS 2S-2M, dual circuit pneumatic brake system according to EC
BODY:

Design for poured load or design for palette load. Dumper top additive 40 + 40 cm. Dumper rear cover can be opened both side and bottom. There is a small wheat lid on the back of the dumper.
LANDING GEAR:

25 ton mechanical landing gear.
ELECTRICAL SYSTEM:

7x2 pin sockets electrical system.
BUFFER:

Foldable rear buffer.
PAINT:

Coats of epoxy lining then coats of acrylic colour..
STANDARTS ACCESSORIES:

Side and rear underrun protection, spare whell carrier (1 unit), toolbox (1 unit), food box (1 unit), water tank (1 unit), wheel shock (1 unit), axle key (1 unit).
OPTIONS:

Double stepne carrier, imported axle, disc brake.
